3 Layers Air Bubble Film Machine (double screw extruder)


Air Bubble Film
Air bubble film can be cushion protection packaging material and isolation material...etc.
Air Bubble Film Roll
Air bubble film machine can produce air bubble film roll for various application.


Perforation Machine
Perforation machine is auxiliary equipment’s for air bubble film the perforated length can be set up in advance, tear off by hand is easily, no need to cut off with knife, pack same size commodities will be more convenient.
Sheeter Machine
Include sheeter machine for air bubble film roll to be cutted to pieces. pieces will be taken easily, pack same size of commodities will be more convenient.

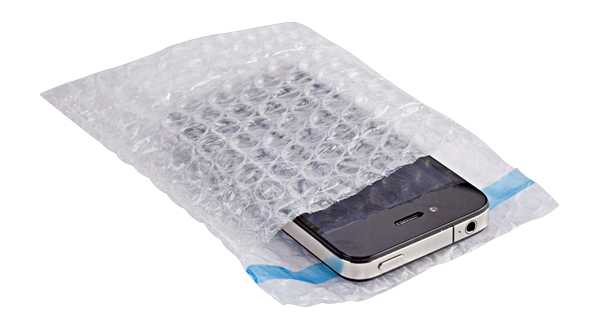

Air Bubble Bags
Pouch bags machine can produce air bubble bags, it is kind of convenient cushion packaging material, it will be easy to pack same size goods and can protection precision parts and easy broken parts
Air Bubble Mailer
The mailer not only can provide anti-shock and protection goods but also water-proof, sutiable for documents delivery or small carton application.


Solar Pool Cover
The pool cover can prevent water evaporation and keep water temperature, also can let dust or any waste material go inside of pool.
Aluminum Insulation Air Bubble Sheet
The sheet can use for roof insulation also can do insulation bags…etc.

Technical Specifications
Model | AB-B100T | AB-B125T | AB-B150T | AB-B160T | AB-B200T | AB-B250T | AB-B300T |
Raw Mateial | LDPE/LLDPE | ||||||
Max Width (mm) | 1020 | 1270 | 1520 | 1620 | 2020 | 2520 | 3020 |
Thickness (mm) | 0.045-0.20 | ||||||
Screw Dia (mm) | 65 / 55 | 65/55 | 75/75 | 75/55 | 90/65 | 110/75 | 120/80 |
Screw L:D | 30:1 | ||||||
Extruder Motor (kw) | 18.5/11 | 18.5/11 | 22/11 | 22/11 | 37/18.5 | 45/22 | 55/22 |
Take-up Motor (kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 3 |
Vacuum Pump (kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 / 2.2 | 2.2 / 2.2 | 2.2 / 2.2 |
Out Put (kg/hrs) | 67-100 | 84-110 | 100-120 | 108-120 | 125-150 | 140-200 | 160-230 |
Line Speed (Mtr / hrs) | 700-1800 | 700-1800 | 700-1800 | 700-1800 | 700-1800 | 600-1500 | 600-1500 |
Heating Load (kw) | 71 | 71 | 80 | 80 | 95 | 130 | 148 |
Running Load (kw) | 35-43 | 35-43 | 42-52 | 42-52 | 55-65 | 73-85 | 78-88 |
Layer | 3 | ||||||
Weight (kg) | 6000 | 6500 | 7000 | 7400 | 9500 | 10500 | 12000 |
