3 Layers Air Bubble Film Machine (Three Screw Extruder)

Air Bubble Film

Air bubble film can be cushion protection packaging material and isolation material...etc.

Air Bubble Film Roll

Air bubble film machine can produce air bubble film roll for various application.

Perforation Machine

Perforation machine is auxiliary equipment’s for air bubble film the perforated length can be set up in advance, tear off by hand is easily, no need to cut off with knife, pack same size commodities will be more convenient.

Sheeter Machine

Include sheeter machine for air bubble film roll to be cutted to pieces. pieces will be taken easily, pack same size of commodities will be more convenient.

Air Bubble Bags

Pouch bags machine can produce air bubble bags, it is kind of convenient cushion packaging material, it will be easy to pack same size goods and can protection precision parts and easy broken parts

Air Bubble Mailer

The mailer not only can provide anti-shock and protection goods but also water-proof, sutiable for documents delivery or small carton application.

Solar Pool Cover

The pool cover can prevent water evaporation and keep water temperature, also can let dust or any waste material go inside of pool.

Aluminum Insulation Air Bubble Sheet

The sheet can use for roof insulation also can do insulation bags…etc.

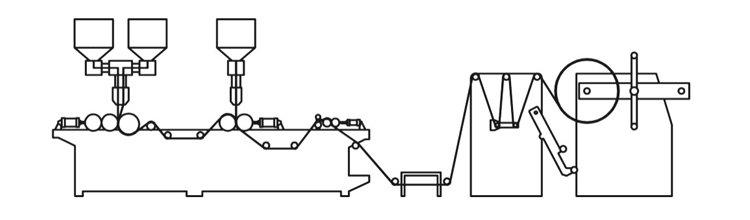

Advantages

  • Raw materials are melted
  • Two layers of high temperature film are extruded
  • Forming cylinder
  • Compression cylinder
  • Cooling cylinder
  • Cooling Cylinder
  • Rough edges are trimmed, slitting is performed
  • Trimmed edges are collected
  • Tension applied to finished product

Technical Specifications

Model AB-W100T AB-W125T AB-W150T AB-W160T AB-W200T AB-W250T AB-W300T
Raw Mateial LDPE/LLDPE
Max Width (mm) 1020 1270 1520 1620 2020 2520 3020
Thickness (mm) 0.045-0.30
Screw Dia (mm) 55/55/55 55/55/55 65/65/65 65/65/65 75/75/65 85/85/75 90/90/80
Screw L:D 30:1
Extruder Motor (kw) 11/11/11 11/11/11 18.5/18.58/11 18.5/18.58/11 22/22/18.5 30/30/22 37/37/22
Take-up Motor (kw) 2.2 2.2 2.2 2.2 2.2 3 3
Vacuum Pump (kw) 2.2 2.2 2.2 2.2 2.2 / 2.2 2.2 / 2.2 2.2 / 2.2
Out Put (kg/hrs) 65-120 83-120 100-160 108-160 135-210 150-240 160-260
Line Speed (Mtr / hrs) 700-1800 700-1800 700-1800 700-1800 700-1500 700-1500 700-1500
Heating Load (kw) 83 83 95 95 112 143 150
Running Load (kw) 40-47 42-49 53-60 55-65 70-80 80-90 90-98
Layer 3
Weight (kg) 6300 7000 7700 7900 10000 11400 12500
