Twin Die Extrusion Coating Lamination Machine


Woven Febric And Thicker Paper Lamination Application
Laminating machine can produce different products for laminating processing, such as canvas, ton bag, composite paper bag, bopp woven bag, onion bag, paper cup, lunch box, non-woven fabric, net and aluminum foil composite material. processing demand products.
Jumbo Bag
Used in the packaging of various powdery, granular and blocky articles such as resin, chemicals and agricultural products.


Woven bag
It is moisture-proof, dust-proof and structurally strong enough. It can also be laminated with BOPP film, also can be printed on packaging directly and used to package rice, fertilizer, etc.
Multi layer paper bag
Suitable for packaging of cement, resin and chemical raw materials.


Onion bag
It can preserve foods that are easy to be stuffy, such as onions and potatoes, and has good air permeability.
Paper cups, lunch boxes
Can be used to hold liquids, food, etc


Non-woven
Non-woven fabric with lamination can be produced for shopping bags, medical and hygiene products, table cloths, etc.
Geotextile
Geotextile with the application for civil engineering, to protection, drainage, filtration, etc. for soil and water conservation.


Reinforced paper
With glass fiber mesh to be stronger, not easy to tear up.

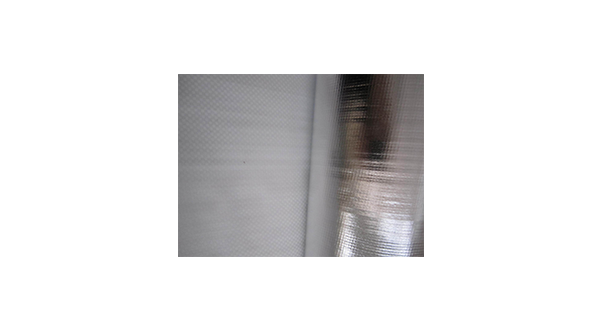

Woven fabric with aluminum foil

Toptima Machine’s has wide range of Extrusion Coating Lines Models to meet a variety of applications.
For coating thin layer of polyolefin’s (Mainly LDPE / PP) on substrates like Paper, Cotton Cloth, Woven Fabrics, Jute fabric, Aluminium foil, BOPP film, Polyester film, etc. up to 5200 mm Web width applications.
For coating thin layer of polyolefin’s (Mainly LDPE / PP) on substrates like Paper, Cotton Cloth, Woven Fabrics, Jute fabric, Aluminium foil, BOPP film, Polyester film, etc. up to 5200 mm Web width applications.
Tandem Lamination Plant for coating Circular Woven fabric, for producing multilayer laminates up to 5 layers along with the various substrates like Paper, Aluminium foil, Polyester film etc.
The main technical parameters:
MODEL | TP LAM 1200 | TP LAM 1400 | |
Screw Dia (MM) | 70 | 80 | |
L/D Ratio | 30:1 | 30:1 | |
Die Width (MM) | 1200 | 1400 | |
Maximum Coating Width (MM) | 1050 | 1300 | |
Minimum Coating Width (MM) | 500 | 800 | |
Coating Thickness (Micron) | 10 – 80 | 10-80 | |
Max. Output (Kg./Hr.) | PP | 100-120 | 140 – 160 |
LDPE | 120-140 | 160 – 180 | |
Max. Line Speed (M.P.M.) | 110 | 110 |
