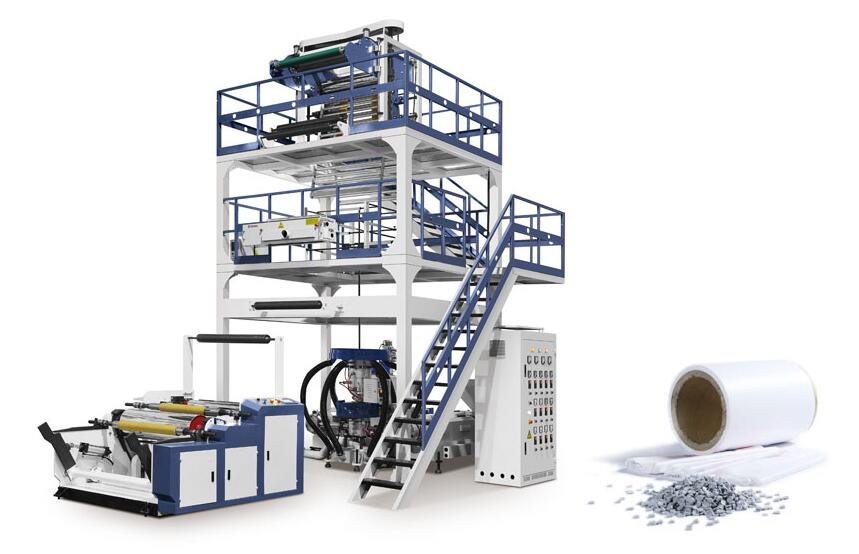

Two Layer (AB) Blown Film Machine
Technical Specifications
| Model | DL/50-45/900 | DL/55-50/1200 | DL/65-55/1400 |
| Film width (mm) | 250-800mm | 500-1100mm | 500-1300mm |
| Film thickness | 0.01-0.15mm | 0.01-0.15mm | 0.01-0.15mm |
| Max output | 125kg/h | 150kg/h | 175kg/h |
| According to different width,thickness of film, die size and raw material characteristics to change | |||
| Suitable material | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE |
| Diameter of screw | Φ50/45,30/1 | Φ55/50,30/1 | Φ65/55,30/1 |
| SACM 645 ,bimetallic ，five years guarantee | |||
| Main motor | 15kw/18.5KW | 22/18.5kw | 30kw/22KW |
| 100% Original three-phase variable frequency motor Equipped with inverter control | |||
| Take up roller(mm) | 900mm | 1200mm | 1400mm |
| Weight | 3200kg | 3800kg | 4200kg |
| Overall dimension（L*W*H）m | 6.5*3*5.8 | 6.5*3.8*6.2 | 6.8*4*6.8 |
Optional device:
Automatic Hopper Loader
Film Surface Treater
Rotary Die
Oscillating Take Up Unit
Two Stations Surface Winder
Chiller
Heat Slitting Device
Gravimetric Dosing Unit
IBC(Internal Bubble Cooling Computer Control System)
EPC(Edge Position Control)
Electronic Tension Control
Manual mechanics screen changer
Edge material recycling machine
PRODUCT FEATURES
1. the whole machine is square structure
2. traction inverter control, host frequency conversion control, (optional fan frequency control, winding frequency control) 100% inverter motor + frequency converter control
3. Full enclosed over temperature cooling device
4. brand Industrial electricity
5. Lambdoidal board
