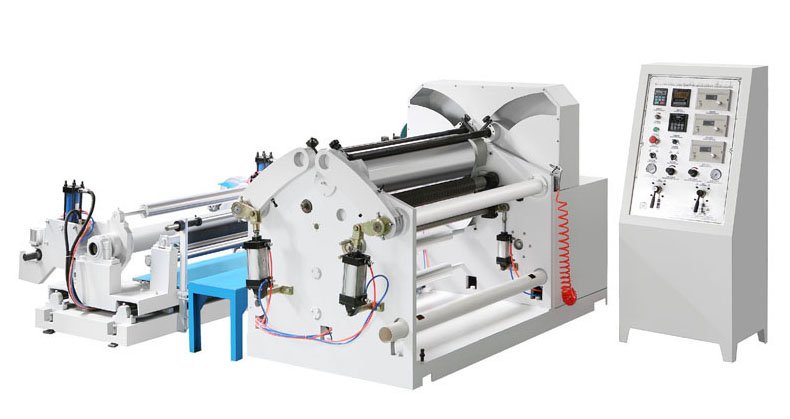

Surface Winding and Slitting Machine
Application and Features
The machine is applied to slitting roll materials of small size, such as OPP, PET, and cigarette case seals, etc. Main motor adopts frequency speed adjustment and magnetic powder is used for unwinding constant tension control. The machine is equipped with photoelectric E.P.C auto edge correction. Two magnetic powder clutch for rewinding and main motor linkage control (air pressure) center coiling and surface contact. Double shaft staggered rewinding and never touch each other. The machine also has the functions of presetting meters, auto stop and others.The machine is famous for compact structure, smooth running and easy operation.
Technical Specifications
| Model | LFQ1000-C/LFQ1300-C/ LFQ1500-C |
| Max. slitting speed | 170m/min |
| Max. unwinding dia. | 1000mm |
| Max. rewinding dia. | 420mm |
| Rewinding paper core | 25mm-76mm(optional) |
| Min. slitting width | 5mm(straight blade)/6mm(round blade) |
| Max. unwinding width | 1000mm/1300mm/1500mm |
| Total power | 5.5kw/7.5kw/10kw |
| Weight | 2300kg/2800kg/3200kg |
| Dimension | 2200*2500*1100mm/2500*2500*1100mm 2700*2500*1100mm |
